Screw type water chiller首頁>Products>Screw type water chiller
    • 380V 3PH 50Hz R407c 100HP Air Cooled Screw Type Chiller Industrial Water Chiller
    • 產(chǎn)品詳情

    Product Description
    詳情頁-1

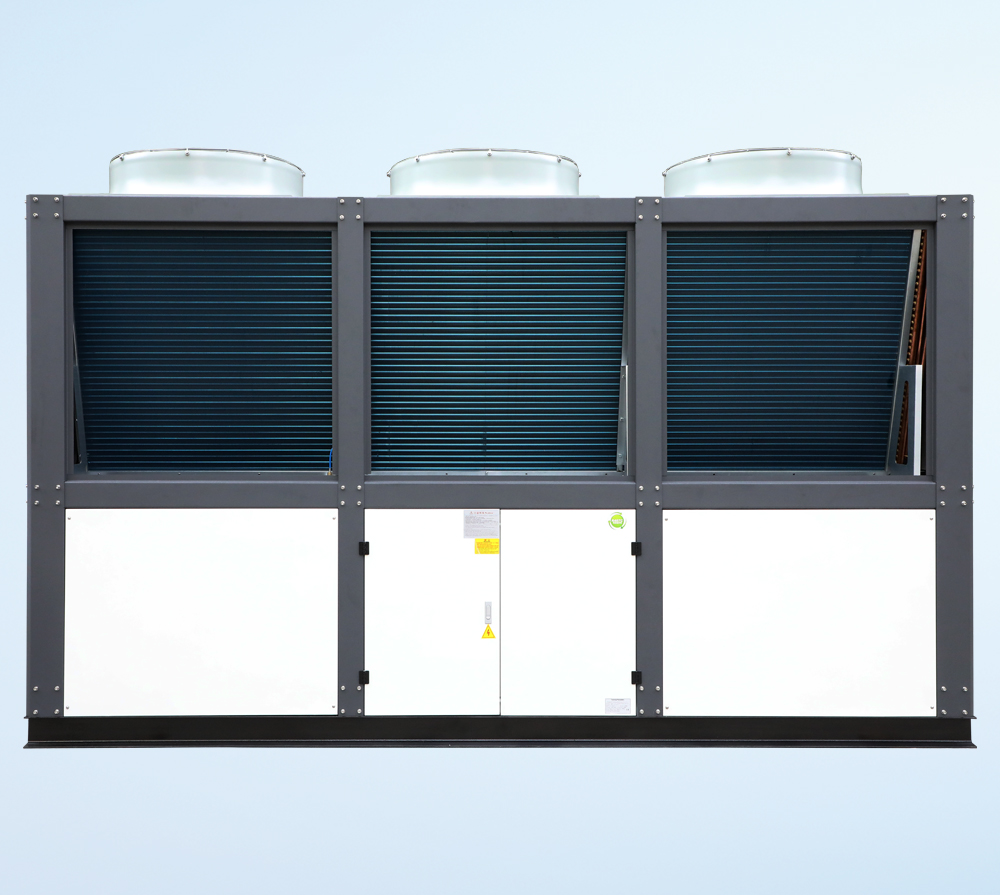

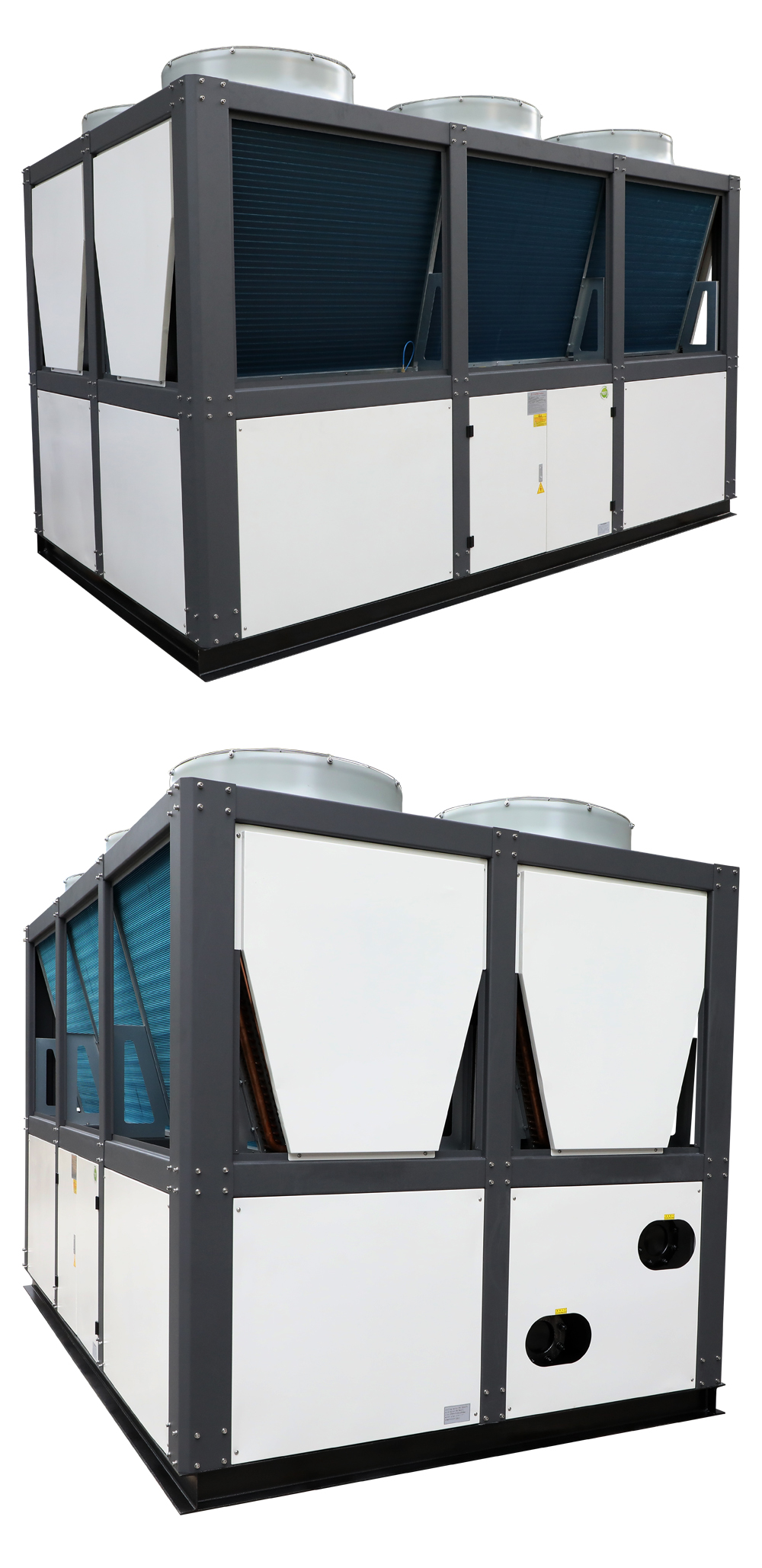

    Air Cooled Screw Chiller

    FAST COOLING

    100HP AIR COOLED SCREW CHILLER

    INTELLIGENT CONSTANT TEMPERATURE/RUN SMOOTHLY/MUTE AND ENERGY SAVING

    詳情頁-2

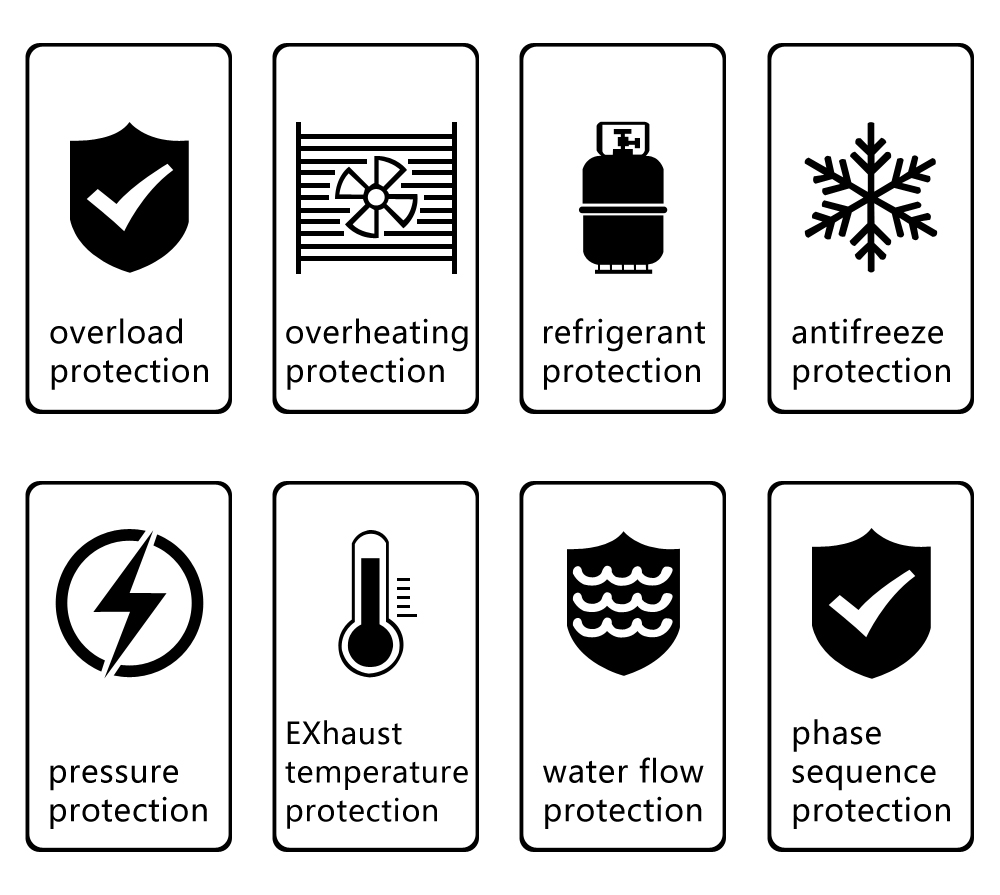

    EIGHT PROTECTIONS,REFRIGERATION WORRY FREE詳情頁-3

    Suitable For Various Industries

                                          Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of

                                                  molded products and shorten period of injection molding cycles. Hence maximizes productivity

    of plastic molding manufacturing.

    詳情頁-4


    Details Of Air Cooled Screw Chillers

    詳情頁-5

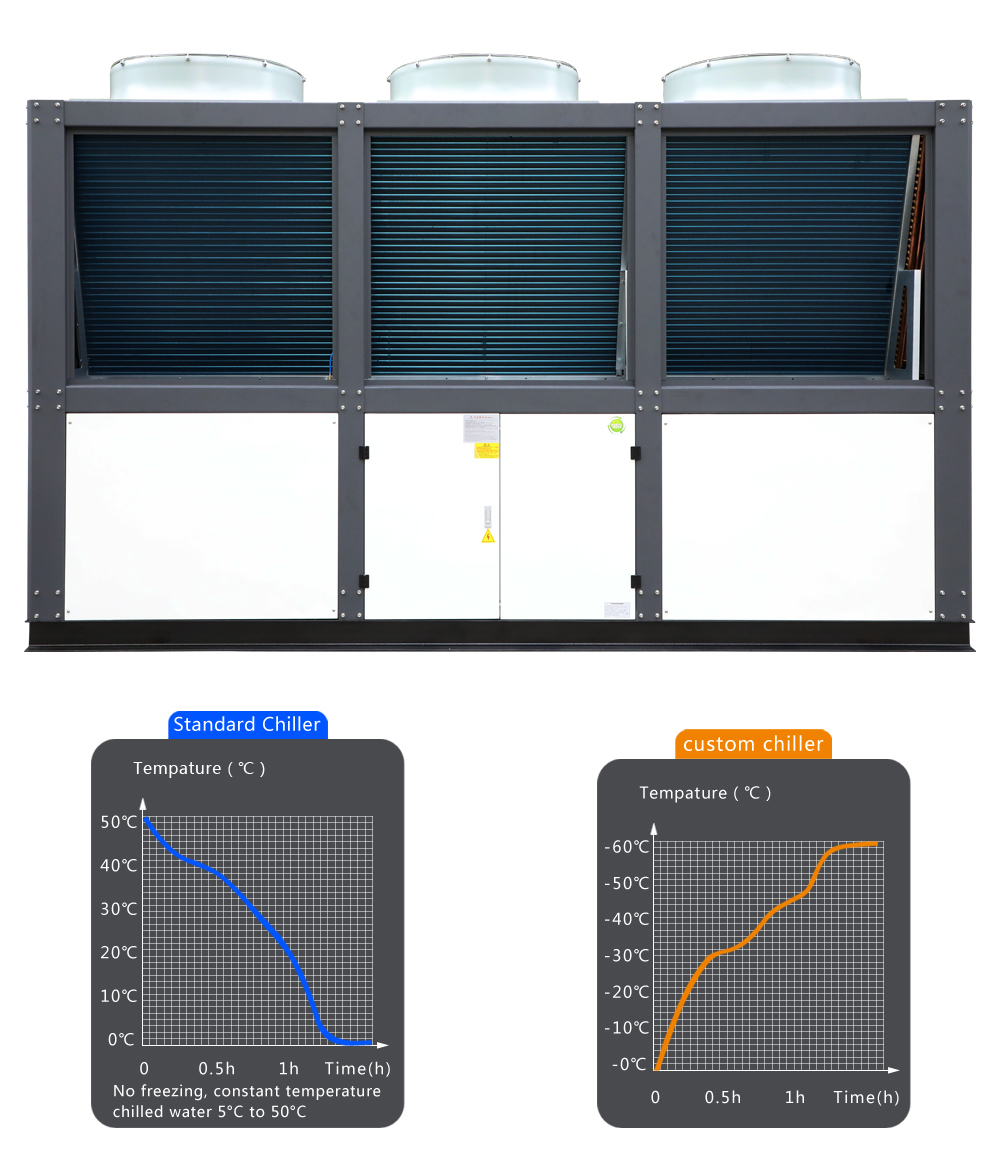

    CAN BE CUSTOMIZABLE 5oC~-60oC

    The temperature control range of the equipment can be customized for you according to your

    needs: 5oC~-60oC can be customized with sub-zero cold and heat integration, corrosion resistance

    詳情頁-6

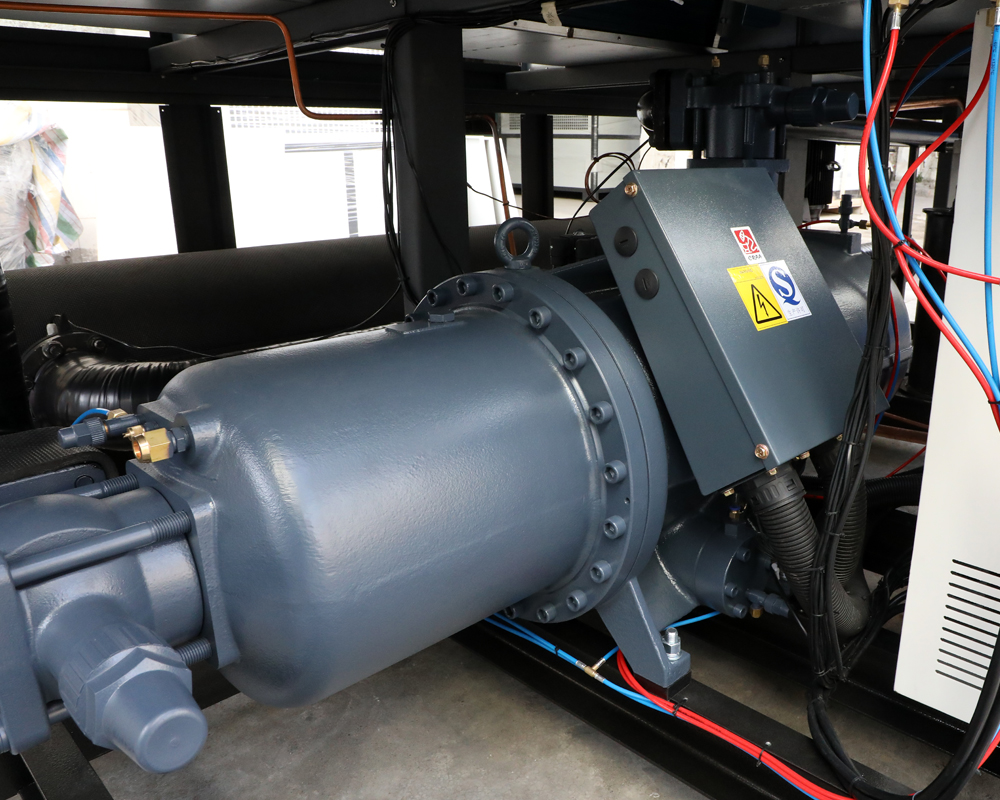

    HANBELL COMPRESSOR,FULL OF ENERGY
    Using high quality bearings, designed operating life under standard working

    conditions Up to 50,000 hours or more, single head or double head詳情頁-7

    WHOLE MACHINE FACTORY,OPEN THE WOODEN CASE AND CAN USING IT

    Before leaving the factory .alreadly test it just connect water pipe and

    wires. And then can use it.no need complex install.

    詳情頁-8

    Air Cooled Screw Chiller Parameters

    MODELLC-90ASLC-100ASLC-120AS
    COOLING
    CAPACITY    		KCAL/HX103211226275
    KW245263320
    USRT707591
    POWER SUPPLY380V/3PH/50HZ
    REFRIGERANTR22/R407C/R134a
    REFRIGERATION CIRCUIT1
    THROTTLING DEVICETHERMAL EXPANSION VALVE/ELECTRONIC EXPANSION VALVE
    COMPRESSORTYPESEMI-HERMETIC SCREW
    STARTINGY-△/MINUTE WINDING
    ENERGY CONTROL25%-50%-75%-100%
    INPUT POWER(KW)8286103
    RATED CURRENT(A)137145173
    CONDENSERTYPEHIGH EFFICIENT COPPER COVERED INTO ALUMINUM FIN
    COOLING AIR FLOW91500102500115000
    COOLING FAN6.46.87.2
    EVAPORATORTYPEHIGH EFFICIENT INTERNAL THREAD COOPER PIPE SHELL AND TUBE TYPE
    WATER FLOW424555
    PRESSURE LOSS656565
    PIPE SPECIFICATIONSDN100DN100DN100
    SAFETY DEVICESOVERLOAD PROTECTION,HIGH AND LOW PRESSURE PROTECTION, EXHAUST OVERHEATING PROTECTION,
    ANTIFREEZE PROTECTION, POWER INVERSE PHASE PROTECTION, HYDRAULIC PROTECTION.
    MECHANICAL DIMENSIONL(mm)430043004600
    W(mm)210021002100
    H(mm)200020002000
    MACHINE WEIGHT225023502550
    OPERATING WEIGHT250026002800

    詳情頁-9

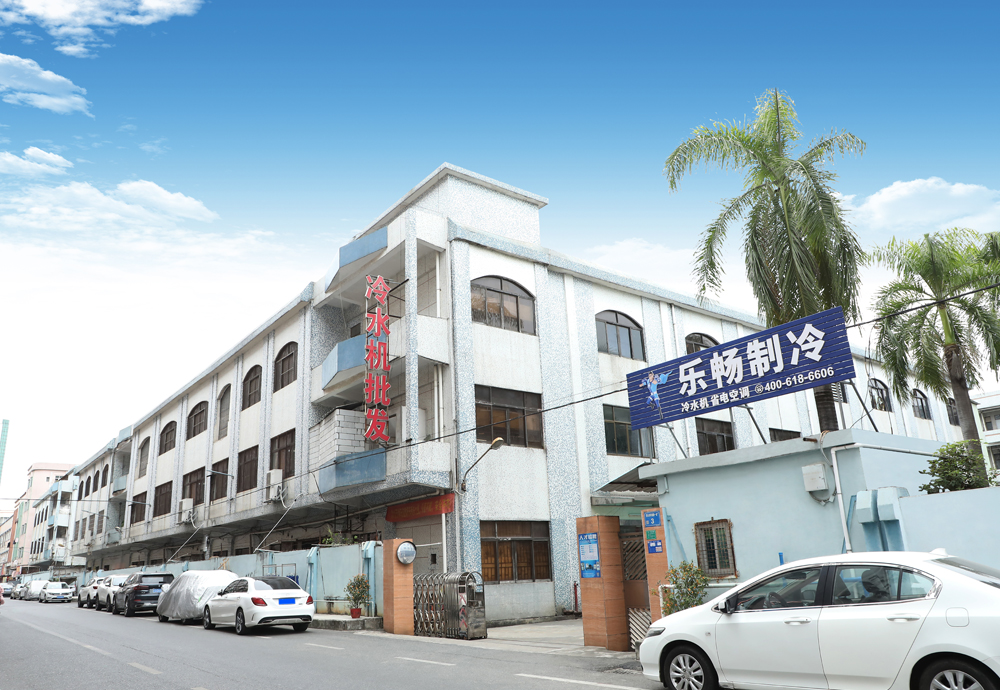

    Company Show

    Guangdong Lechang Refrigeration Technology Co., Ltd was founded in 2009. Located in Chashan Town.

    Dongguan City.Guangdong province. Specilizedproduction industrial chiller,explosion-proof chiller.

    stainless steel chiller.Acid and alkali resistance chiller,low temperature chiller.adhering to the business

    philosophy: "honesty,with emotion, good reputation,and excellent customer service " .Building a

    platform for employees and creating value for customers are the company's core values.

    Lechang machines widely used in plastics, electronics, toys, medical, aerospace, chemical, food.

    The annual sales volume exceeds 6,000 units.

    詳情頁-10詳情頁-11

    FAQ

    Q1:Are you a factory or trading company?
    A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available to suit any cooling need.


    Q2:What's warranty and after-sale service of machine?

    A:Thirteen months Warranty for main machinery part like motor and electric;

    Life-long maintenance service(Email and calling service in working hours)


    Q3: How to install and run the machine?
    A: Our technician have installed the machine before shipping.

    Q4: How can I do if the machine goes wrong?
    A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.


    Q5:How about the quality of your product?

    · Our products manufactured strictly according to national and international standard.

    · We have CE, ISO certification.

    · We take a test on every product before shipping.


    Q6:Whether the product can be customized?

    · We can make products according to customer's requirements.


    Q7:Don't know which type you need?

    A:Please send us your requirement or contact us directly!


    Q8:Don't know how the machine working?

    A:Contact us to see the video and get further information!
